DVID-T Series
Tabletop Workstation
Previous
Next
- Overview
- Features
- Performance
- Specifications
- Order
DVID-T series tabletop workstations provide outstanding tabletop vibration isolation, especially
for lightweight low-profile precision instruments requiring pneumatic vibration isolation
Portable, Compact Design
The compact, low-profile, lightweight taletop workstation is easy to install and carry.
Highly Damped Working Surface
The DVID-T series comes with ethier a stainless steel laminated top plate or a honeycomb breadboard based on users' applications and preferences.
Automatic leveling
If the tabletop platform is applied by an external force, the integrated leveling valves automatically relevel the platform.

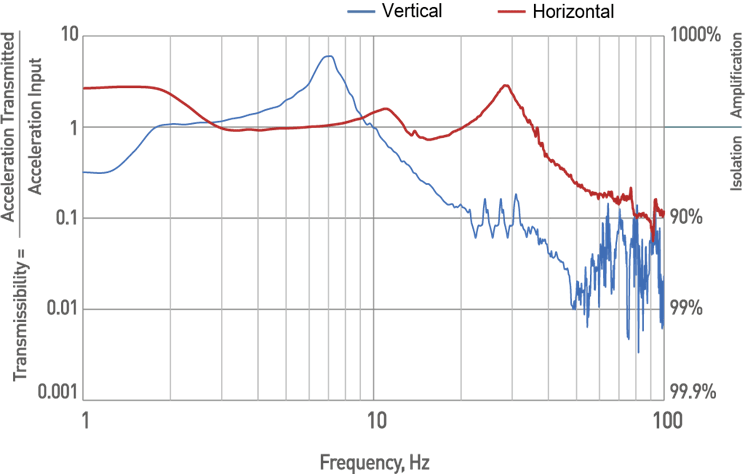

| Construction | ||
|---|---|---|
| Top Plate | Optical Breadboard / Stainless Steel | |
| Performance | ||
| Isolation System | Pneumatic Isolation | |
| Isolator Type | ISO-B2 | |
| Vertical Resonant Frequency | 7.0 - 8.0 Hz | |
| Vertical Vibration Isolation at 20 Hz | 80 – 90% | |
| Maximum Load Capacity | 150kg | |
| Automatic Leveling | Yes | |
| Leveling Repeatability | Standard Leveling Valve = ±1.0 mm | |
| Required Air Supply | 3 - 5kg/cm² nitrogen or compressed air | |

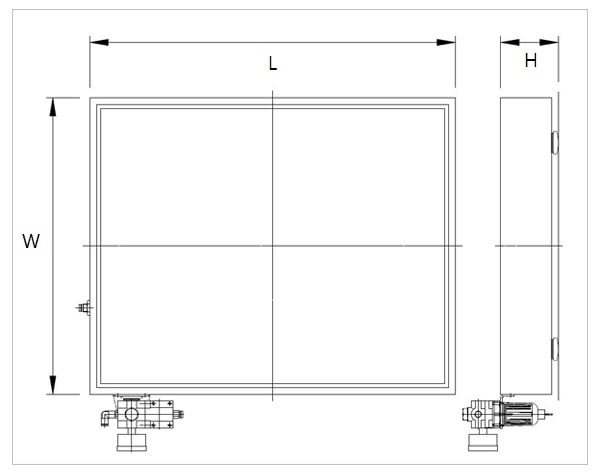

Ordering Information
Ordering Chart (Stainless Steel Type)
| Model No. | Vibration Isolated Area (W1 x L1) | Dimensions WxDxH(mm) | Weight (kg) |
|---|---|---|---|
| DVID-T-45A | 400 x 500 | 432 x 532 x 84 | 50 |
| DVID-T-56A | 500 x 600 | 532 x 632 x 84 | 65 |
| DVID-T-66A | 600 x 600 | 632 x 632 x 84 | 70 |
| DVID-T-86A | 800 x 600 | 832 x 632 x 84 | 80 |
Ordering Chart (Optical Breadboard Type)
| Model No. | Vibration Isolated Area (W1 x L1) | Dimensions WxDxH(mm) | Weight (kg) |
|---|---|---|---|
| DVID-T-45A-25t | 400 x 500 | 432 x 532 x 97 | 45 |
| DVID-T-56A-25t | 500 x 600 | 532 x 632 x 97 | 60 |
| DVID-T-66A-25t | 600 x 600 | 632 x 632 x 97 | 65 |
| DVID-T-77A-25t | 700 x 700 | 732 x 732 x 97 | 70 |
| DVID-T-86A-25t | 800 x 600 | 832 x 632 x 97 | 75 |
| DVID-T-88A-25t | 800 x 800 | 832 x 832 x 97 | 78 |
| DVID-T-45A-50t | 400 x 500 | 432 x 532 x 122 | 50 |
| DVID-T-56A-50t | 500 x 600 | 532 x 632 x 122 | 65 |
| DVID-T-66A-50t | 600 x 600 | 632 x 632 x 122 | 70 |
| DVID-T-77A-50t | 700 x 700 | 732 x 732 x 122 | 75 |
| DVID-T-86A-50t | 800 x 600 | 832 x 632 x 122 | 80 |
| DVID-T-88A-50t | 800 x 800 | 832 x 832 x 122 | 83 |
