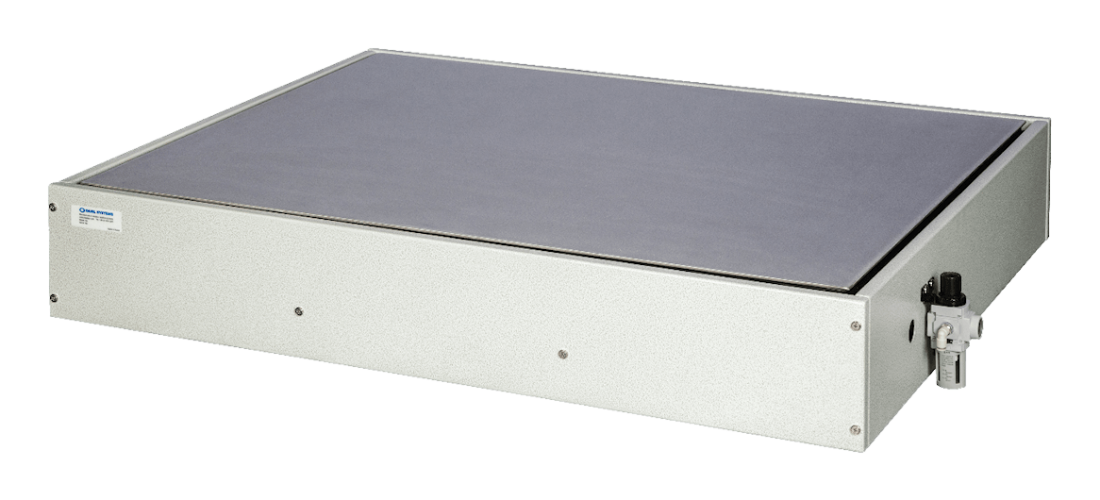

DVIP-B Series
Base Pneumatic Vibration Isolation Platform
- Overview
- Specifications
The DVIP-B series is a base pneumatic vibration isolation platform,
designed to isolate high-precision equipment from floor vibrations.
| Platform Dimensions | Custom-made | ||||||||||||
| Vibration Isolation System | Pneumatic Isolation System | ||||||||||||
| Resonant Frequency | 1.2–3.0 Hz | ||||||||||||
| Vibration Isolation at 10 Hz | 80–99% | ||||||||||||
| Load Capacity | 500–2000 kg | ||||||||||||
| Automatic Leveling | Yes | ||||||||||||
| Accuracy of Leveling Repeatability | ±1.0 mm for Standard Leveling Valve ±0.05 mm for Precision Leveling Valve |
||||||||||||
| Required CDA | 4–6 bar | ||||||||||||
