    Research Grade DVIO Table Top
    • Overview
    • Features
    • Performance
    • Specifications
    • Options & Accessories
    • Order
    • Resources

    Our research grade optical tables offer the finest performance level of broadband damping that effectively
    minimizes relative displacement in a wide frequency; therefore, users can use our optical tables for
    the most challenging applications. The research grade optical tables provide the same features
    as the scientific grade optical tables, but with the higher structural damping level,
    increased elastic selection modulus and improved rigidity.



    Steel Honeycomb Core Structure

    The corrugated honeycomb steel layers are vertically epoxy bonded with a stainless steel top skin, a carbon steel bottom skin
    and sidewalls, increasing its core density and minimizing its cell size. The steel honeycomb core structure provides
    the highest core density and the smallest honeycomb core cell size, offering the maximum static and dynamic rigidity.


    Steel-Honeycomb-Core-Structure


    Smallest Honeycomb Core Cells

    Our steel honeycomb core yields in the highest core density and the smallest honeycomb cell size 2.9㎠, offering the
    superb rigid table top. As the smallest honeycomb cells contributing to increase the elastic selection modulus, the natural
    frequency of the optical table tops increases, which the table top is less likely to respond to external forces and unfiltered
    vibration. Moreover, the higher natural frequency minimizes vibration intensities and deflection under loads.
    Our optical table top is all steel constructed, ensuring the long term thermal stability.


    previous arrow
    next arrow
    previous arrownext arrow
    Slider


    Individually Sealed Mounting Holes

    Spill-proof and non-corrosive nylon cups are individually epoxy-bonded under each mounting hole to prevent spilling of liquids from contaminating the honeycomb core.


    previous arrow
    next arrow
    previous arrownext arrow
    Slider


    Tapped and Clean Surface

    The table top surface is precision tapped and delicately sanded to provide a non-reflecting surface. Moreover, the surface is completely cleaned to remove residual metal particles and cutting fluids.


    Tapped-and-Clean-Surface

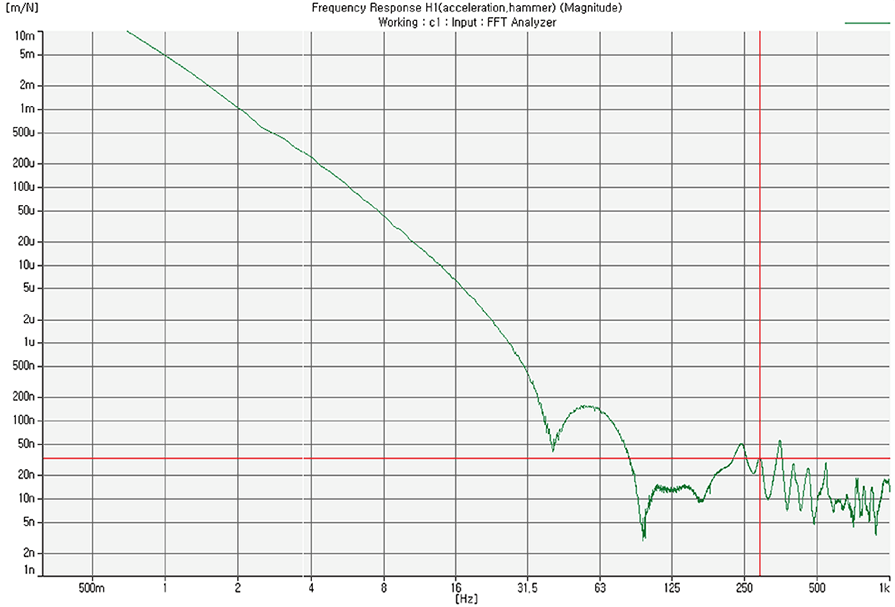

    The corner compliance was measured on a 2000 x 1200 x 300 mm Research Grade optical table top.

    The-corner-compliance-was-measured-on-the-Research-Grade-Optical-Table-Top

    Construction
    Core steel honeycomb core structure, 0.25 mm thick foil
    Core Cell Size 2.9 cm²
    Core Shear Modulus 19339 kgf/cm² (275,000 psi)
    Surface Flatness ±0.1 mm over 600 x 600 mm area
    Top Skin 430 series ferromagnetic stainless steel, 4.0 mm thick
    Bottom Skin 4.5 mm thick steel
    Side Walls 2.0 mm thick steel plate with highly damped composite wood
    Mounting Holes M6-1.0
    Mounting Hole Grid 25 mm grid
    Mounting Hole Borders 37.5 mm
    Mounting Holes Sealing 21 mm deep clean cylindrical cap
    Damping: broadband damping
    Performance
    Research Grade (2000 x 1200 x 300 mm) Scientific Grade (2000 x 1200 x 300 mm)
    Resonant Frequency 288 Hz 200 Hz
    Compliance 25n m/N 85 n m/N


    Options



    Scientific Grade Optical Table Top

    Optical-Tabletop-SG-NEW-LEATHER-COVER2

    Non-magnetic Stainless Steel Optical Table Top

    Non-magnetic-Stainless-Steel-Optical-Table-Top



    Custom Optical Table Tops

    We offer customization of optical table tops to meet a variety of customers' needs.


    previous arrow
    next arrow
    previous arrownext arrow
    Slider


    Joined Optical Tables

    Joined-Optical-Tables1
    Joined-Optical-Tables2


    Accessories



    DOTS - Overhead Shelf

    DOTS-Overhead-Shelf

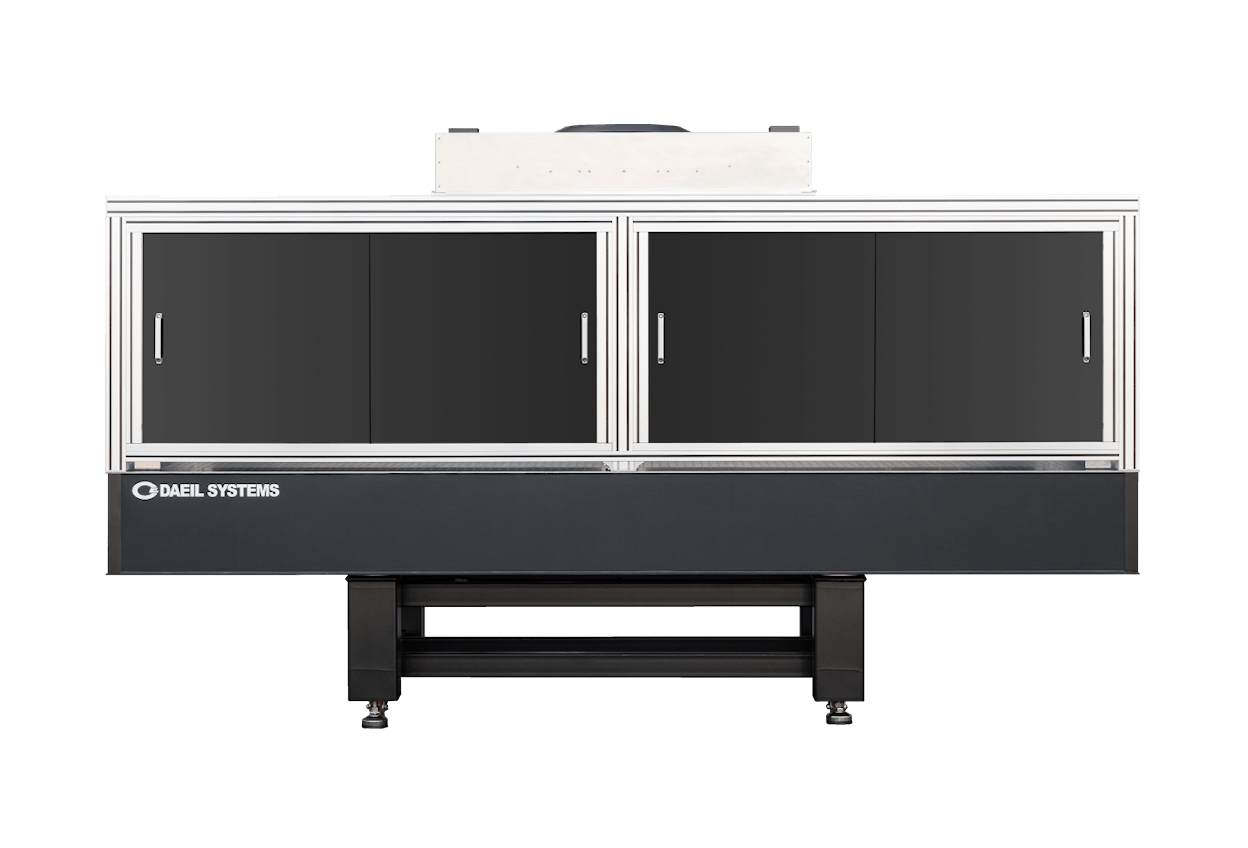

    DOTE - Table Enclosure

    DOTE-table-enclosure



    DCB - Clean Booth

    DCB-Clean-Booth

    DB - Dark Booth

    DB-Dark-Booth



    Faraday Cage

    Faraday-Cage

    DAC-30 - Air Compressor

    DAC-30-Air-Compressor



    Related Products



    Pneumatic Support with Tie-Bars & Casters

    Pneumatic-Support-with-Tie-Bars-and-Casters

    Pneumatic Support - Self-Standing Type

    Pneumatic-Support-Self-Standing-Type



    Rigid Support with Tie-Bars & Casters

    Rigid-Support-with-Tie-Bars-and-Casters

    Rigid Support - Self-Standing Type

    Rigid-Support-Self-Standing-Type




    Ordering Information



    Research-Grade-Ordering-infomation



    Ordering Chart

    Optical Table Top 200t


    Model No. Dimensions W x D x t (mm) Dimensions W x D x t (in.) Weight (kg)
    DVIO-B-1010M/E-200t-R.G/S.G 1000 x 1000 x 200 40 x 40 x 8 139
    DVIO-B-1212M/E-200t-R.G/S.G 1200 x 1200 x 200 48 x 48 x 8 201
    DVIO-B-1575M/E-200t-R.G/S.G 1500 x 750 x 200 60 x 30 x 8 157
    DVIO-B-1509M/E-200t-R.G/S.G 1500 x 900 x 200 60 x 36 x 8 188
    DVIO-B-1510M/E-200t-R.G/S.G 1500 x 1000 x 200 60 x 40 x 8 209
    DVIO-B-1512M/E-200t-R.G/S.G 1500 x 1200 x 200 60 x 48 x 8 251
    DVIO-B-1515M/E-200t-R.G/S.G 1500 x 1500 x 200 60 x 60 x 8 313
    DVIO-B-1807M/E-200t-R.G/S.G 1800 x 700 x 200 72 x 28 x 8 175
    DVIO-B-1875M/E-200t-R.G/S.G 1800 x 750 x 200 72 x 30 x 8 188
    DVIO-B-1809M/E-200t-R.G/S.G 1800 x 900 x 200 72 x 36 x 8 226
    DVIO-B-1810M/E-200t-R.G/S.G 1800 x 1000 x 200 72 x 40 x 8 251
    DVIO-B-1812M/E-200t-R.G/S.G 1800 x 1200 x 200 72 x 48 x 8 301
    DVIO-B-1815M/E-200t-R.G/S.G 1800 x 1500 x 200 72 x 60 x 8 376
    DVIO-B-2009M/E-200t-R.G/S.G 2000 x 900 x 200 80 x 36 x 8 251
    DVIO-B-2010M/E-200t-R.G/S.G 2000 x 1000 x 200 80 x 40 x 8 278
    DVIO-B-2012M/E-200t-R.G/S.G 2000 x 1200 x 200 80 x 48 x 8 334
    DVIO-B-2015M/E-200t-R.G/S.G 2000 x 1500 x 200 80 x 60 x 8 417
    DVIO-B-2409M/E-200t-R.G/S.G 2400 x 900 x 200 96 x 36 x 8 301
    DVIO-B-2410M/E-200t-R.G/S.G 2400 x 1000 x 200 96 x 40 x 8 334
    DVIO-B-2412M/E-200t-R.G/S.G 2400 x 1200 x 200 96 x 48 x 8 401
    DVIO-B-2415M/E-200t-R.G/S.G 2400 x 1500 x 200 96 x 60 x 8 501
    DVIO-B-2508M/E-200t-R.G/S.G 2500 x 800 x 200 100 x 32 x 8 278
    DVIO-B-3009M/E-200t-R.G/S.G 3000 x 900 x 200 120 x 36 x 8 376
    DVIO-B-3010M/E-200t-R.G/S.G 3000 x 1000 x 200 120 x 40 x 8 417
    DVIO-B-3012M/E-200t-R.G/S.G 3000 x 1200 x 200 120 x 48 x 8 501
    DVIO-B-3015M/E-200t-R.G/S.G 3000 x 1500 x 200 120 x 60 x 8 626
    DVIO-B-3612M/E-200t-R.G/S.G 3600 x 1200 x 200 144 x 48 x 8 601
    DVIO-B-3615M/E-200t-R.G/S.G 3600 x 1500 x 200 144 x 60 x 8 751


    Optical Table Top 300t


    Model No. Dimensions W x D x t (mm) Dimensions W x D x t (in.) Weight (kg)
    DVIO-B-1010M/E-300t-R.G/S.G 1000 x 1000 x 300 40 x 40 x 12 165
    DVIO-B-1212M/E-300t-R.G/S.G 1200 x 1200 x 300 48 x 48 x 12 238
    DVIO-B-1575M/E-300t-R.G/S.G 1500 x 750 x 300 60 x 30 x 12 186
    DVIO-B-1509M/E-300t-R.G/S.G 1500 x 900 x 300 60 x 36 x 12 223
    DVIO-B-1510M/E-300t-R.G/S.G 1500 x 1000 x 300 60 x 40 x 12 248
    DVIO-B-1512M/E-300t-R.G/S.G 1500 x 1200 x 300 60 x 48 x 12 297
    DVIO-B-1515M/E-300t-R.G/S.G 1500 x 1500 x 300 60 x 60 x 12 372
    DVIO-B-1875M/E-300t-R.G/S.G 1800 x 750 x 300 72 x 30 x 12 223
    DVIO-B-1809M/E-300t-R.G/S.G 1800 x 900 x 300 72 x 36 x 12 268
    DVIO-B-1810M/E-300t-R.G/S.G 1800 x 1000 x 300 72 x 40 x 12 297
    DVIO-B-1812M/E-300t-R.G/S.G 1800 x 1200 x 300 72 x 48 x 12 357
    DVIO-B-1815M/E-300t-R.G/S.G 1800 x 1500 x 300 72 x 60 x 12 446
    DVIO-B-2009M/E-300t-R.G/S.G 2000 x 900 x 300 80 x 36 x 12 297
    DVIO-B-2010M/E-300t-R.G/S.G 2000 x 1000 x 300 80 x 40 x 12 330
    DVIO-B-2012M/E-300t-R.G/S.G 2000 x 1200 x 300 80 x 48 x 12 396
    DVIO-B-2015M/E-300t-R.G/S.G 2000 x 1500 x 300 80 x 60 x 12 495
    DVIO-B-2409M/E-300t-R.G/S.G 2400 x 900 x 300 96 x 36 x 12 357
    DVIO-B-2410M/E-300t-R.G/S.G 2400 x 1000 x 300 96 x 40 x 12 396
    DVIO-B-2412M/E-300t-R.G/S.G 2400 x 1200 x 300 96 x 48 x 12 476
    DVIO-B-2415M/E-300t-R.G/S.G 2400 x 1500 x 300 96 x 60 x 12 594
    DVIO-B-2515M/E-300t-R.G/S.G 2500 x 1500 x 300 100 x 60 x 12 620
    DVIO-B-3009M/E-300t-R.G/S.G 3000 x 900 x 300 120 x 36 x 12 446
    DVIO-B-3010M/E-300t-R.G/S.G 3000 x 1000 x 300 120 x 40 x 12 495
    DVIO-B-3012M/E-300t-R.G/S.G 3000 x 1200 x 300 120 x 48 x 12 594
    DVIO-B-3015M/E-300t-R.G/S.G 3000 x 1500 x 300 120 x 60 x 12 743
    DVIO-B-3612M/E-300t-R.G/S.G 3600 x 1200 x 300 144 x 48 x 12 713
    DVIO-B-3615M/E-300t-R.G/S.G 3600 x 1500 x 300 144 x 60 x 12 891


    Optical Table Top 400t


    Model No. Dimensions W x D x t (mm) Dimensions W x D x t (in.) Weight (kg)
    DVIO-B-1812M/E-400t-R.G/S.G 1800 x 1200 x 400 72 x 48 x 16 471
    DVIO-B-1815M/E-400t-R.G/S.G 1800 x 1500 x 400 72 x 60 x 16 589
    DVIO-B-2010M/E-400t-R.G/S.G 2000 x 1000 x 400 80 x 40 x 16 436
    DVIO-B-2012M/E-400t-R.G/S.G 2000 x 1200 x 400 80 x 48 x 16 524
    DVIO-B-2015M/E-400t-R.G/S.G 2000 x 1500 x 400 80 x 60 x 16 654
    DVIO-B-2409M/E-400t-R.G/S.G 2400 x 900 x 400 96 x 36 x 16 471
    DVIO-B-2410M/E-400t-R.G/S.G 2400 x 1000 x 400 96 x 40 x 16 524
    DVIO-B-2412M/E-400t-R.G/S.G 2400 x 1200 x 400 96 x 48 x 16 628
    DVIO-B-2415M/E-400t-R.G/S.G 2400 x 1500 x 400 96 x 60 x 16 785
    DVIO-B-3009M/E-400t-R.G/S.G 3000 x 900 x 400 120 x 36 x 16 589
    DVIO-B-3010M/E-400t-R.G/S.G 3000 x 1000 x 400 120 x 40 x 16 654
    DVIO-B-3012M/E-400t-R.G/S.G 3000 x 1200 x 400 120 x 48 x 16 785
    DVIO-B-3015M/E-400t-R.G/S.G 3000 x 1500 x 400 120 x 60 x 16 981
    DVIO-B-3612M/E-400t-R.G/S.G 3600 x 1200 x 400 144 x 48 x 16 942
    DVIO-B-3615M/E-400t-R.G/S.G 3600 x 1500 x 400 144 x 60 x 16 1178
