알루미늄 플레이트
- Overview
- Specifications
- Order
고강성 알루미늄 플레이트는 블랙-아노다이징으로 표면 처리되어 있으며, M6(1/4-20)의 탭홀이 격자로 뚫려 있어 고객의
장비 장착이 편리합니다. 블랙-아노다이징 표면처리는 빛의 반향을 줄이고 부식으로부터 플레이트를 보호합니다.
12 mm와 15 mm의 두 가지 두께로 제공되는 알루미늄 플레이트는 가벼운 optics, lens 장착하거나
진동에 민감하지 않은 실험용으로 사용하기에 적합한 제품입니다.
| Material | 6061 Aluminum | ||||||||||||
| Finish | 15 um Black Anodized | ||||||||||||
| Thickness | 12 mm / 15 mm/ Custom | ||||||||||||
| Mounting Hole | M6-1.0 | ||||||||||||
| Mounting Hole Grid | 25 mm grid | ||||||||||||
| Mounting Hole Borders | 12.5 mm | ||||||||||||

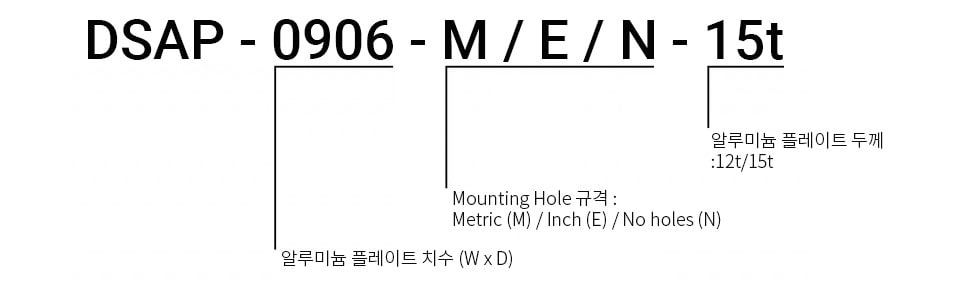

Ordering Information
Ordering Chart
| Model No. | Dimensions W x D x t(mm) |
Dimensions W x D x t(in.) |
Weight (kg) 12t / 15t |
|---|---|---|---|
| DSAP-0302M/E-12t/15t | 300 x 200 x 12/15 | 12 x 8 x 0.5/0.6 | 2/2 |
| DSAP-0303M/E-12t/15t | 300 x 300 x 12/15 | 12 x 12 x 0.5/0.6 | 3/4 |
| DSAP-0304M/E-12t/15t | 300 x 400 x 12/15 | 12 x 16 x 0.5/0.6 | 4/5 |
| DSAP-0345M/E-12t/15t | 300 x 450 x 12/15 | 12 x 18 x 0.5/0.6 | 4/6 |
| DSAP-0305M/E-12t/15t | 300 x 500 x 12/15 | 12 x 20 x 0.5/0.6 | 5/6 |
| DSAP-0306M/E-12t/15t | 300 x 600 x 12/15 | 12 x 24 x 0.5/0.6 | 6/7 |
| DSAP-0307M/E-12t/15t | 300 x 700 x 12/15 | 12 x 28 x 0.5/0.6 | 7/9 |
| DSAP-0404M/E-12t/15t | 400 x 400 x 12/15 | 16 x 16 x 0.5/0.6 | 5/7 |
| DSAP-0405M/E-12t/15t | 400 x 500 x 12/15 | 16 x 20 x 0.5/0.6 | 7/8 |
| DSAP-4545M/E-12t/15t | 450 x 450 x 12/15 | 18 x 18 x 0.5/0.6 | 7/8 |
| DSAP-0406M/E-12t/15t | 400 x 600 x 12/15 | 16 x 24 x 0.5/0.6 | 8/10 |
| DSAP-0407M/E-12t/15t | 400 x 700 x 12/15 | 16 x 28 x 0.5/0.6 | 9/11 |
| DSAP-4575M/E-12t/15t | 450 x 750 x 12/15 | 18 x 30 x 0.5/0.6 | 11/14 |
| DSAP-0502M/E-12t/15t | 500 x 200 x 12/15 | 20 x 8 x 0.5/0.6 | 3/4 |
| DSAP-0505M/E-12t/15t | 500 x 500 x 12/15 | 20 x 20 x 0.5/0.6 | 8/10 |
| DSAP-0506M/E-12t/15t | 500 x 600 x 12/15 | 20 x 24 x 0.5/0.6 | 10/12 |
| DSAP-0507M/E-12t/15t | 500 x 700 x 12/15 | 20 x 28 x 0.5/0.6 | 11/14 |
| DSAP-0575M/E-12t/15t | 500 x 750 x 12/15 | 20 x 30 x 0.5/0.6 | 12/15 |
| DSAP-0508M/E-12t/15t | 500 x 800 x 12/15 | 20 x 32 x 0.5/0.6 | 13/16 |
| DSAP-0509M/E-12t/15t | 500 x 900 x 12/15 | 20 x 36 x 0.5/0.6 | 15/18 |
| DSAP-0606M/E-12t/15t | 600 x 600 x 12/15 | 24 x 24 x 0.5/0.6 | 12/15 |
| DSAP-0607M/E-12t/15t | 600 x 700 x 12/15 | 24 x 28 x 0.5/0.6 | 14/17 |
| DSAP-0609M/E-12t/15t | 600 x 900 x 12/15 | 24 x 36 x 0.5/0.6 | 18/22 |
| DSAP-0707M/E-12t/15t | 700 x 700 x 12/15 | 28 x 28 x 0.5/0.6 | 16/20 |
| DSAP-7575M/E-12t/15t | 750 x 750 x 12/15 | 30 x 30 x 0.5/0.6 | 18/23 |
| DSAP-0909M/E-12t/15t | 900 x 900 x 12/15 | 36 x 36 x 0.5/0.6 | 26/33 |
| DSAP-1003M/E-12t/15t | 1000 x 300 x 12/15 | 40 x 12 x 0.5/0.6 | 10/12 |
| DSAP-1004M/E-12t/15t | 1000 x 400 x 12/15 | 40 x 16 x 0.5/0.6 | 13/16 |
| DSAP-1005M/E-12t/15t | 1000 x 500 x 12/15 | 40 x 20 x 0.5/0.6 | 16/20 |
| DSAP-1006M/E-12t/15t | 1000 x 600 x 12/15 | 40 x 24 x 0.5/0.6 | 19/24 |
| DSAP-1007M/E-12t/15t | 1000 x 700 x 12/15 | 40 x 28 x 0.5/0.6 | 23/28 |
| DSAP-1008M/E-12t/15t | 1000 x 800 x 12/15 | 40 x 32 x 0.5/0.6 | 26/32 |
| DSAP-1009M/E-12t/15t | 1000 x 900 x 12/15 | 40 x 36 x 0.5/0.6 | 29/37 |
| DSAP-1010M/E-12t/15t | 1000 x 1000 x 12/15 | 40 x 40 x 0.5/0.6 | 32/41 |
| DSAP-1011M/E-12t/15t | 1000 x 1100 x 12/15 | 40 x 44 x 0.5/0.6 | 36/45 |
| DSAP-1012M/E-12t/15t | 1000 x 1200 x 12/15 | 40 x 48 x 0.5/0.6 | 39/49 |
| DSAP-1203M/E-12t/15t | 1200 x 300 x 12/15 | 48 x 12 x 0.5/0.6 | 12/15 |
| DSAP-1206M/E-12t/15t | 1200 x 600 x 12/15 | 48 x 24 x 0.5/0.6 | 23/29 |
| DSAP-1209M/E-12t/15t | 1200 x 900 x 12/15 | 48 x 36 x 0.5/0.6 | 35/44 |
| DSAP-1505M/E-12t/15t | 1500 x 500 x 12/15 | 60 x 20 x 0.5/0.6 | 24/30 |
| DSAP-1506M/E-12t/15t | 1500 x 600 x 12/15 | 60 x 24 x 0.5/0.6 | 29/37 |
| DSAP-1845M/E-12t/15t | 1800 x 450 x 12/15 | 72 x 20 x 0.5/0.6 | 26/33 |
